Camshaft Timing Chain, Removing From Camshafts, Cylinder Bank 2 (Left): Removing

There are required preliminary procedures if the camshaft timing chain should be removed from the camshafts when the engine is installed. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .

-- Remove the cylinder bank 2 upper timing chain cover. Refer to UPPER TIMING CHAIN COVERS, REMOVING AND INSTALLING .

-- Remove the vacuum pump. Refer to VACUUM PUMP, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

-- Using the : T40263  and : T40314  , turn the crankshaft -arrow- until the vibration damper is at "TDC".

• The marks -1 and 2- on the camshaft adjusters must align with the corresponding locating tabs -arrows- on the camshaft housing. If necessary turn the crankshaft an additional turn.

  Courtesy of AUDI OF AMERICA, LLC

-- Pierce the exhaust camshaft plug -2- in the center with a screwdriver -1- in direction of -arrow- and carefully lift, at the same time do not damage the sealing surface. (Shown on the cylinder head bank 1).

Courtesy of AUDI OF AMERICA, LLC

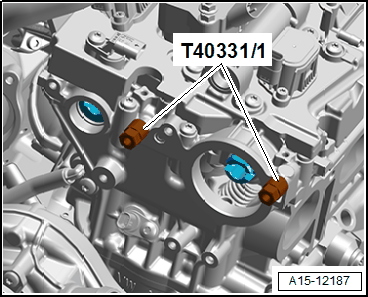

-- Tighten the : T40331/1  on the camshaft housing to 9 Nm.

Courtesy of AUDI OF AMERICA, LLC

• It must be easy to insert the : T40331/1  .

  Courtesy of AUDI OF AMERICA, LLC

• Do not use a hammer to install the camshaft positioning tool.

-- Insert the prepared : T40331/1  all the way into the camshafts. If necessary slightly turn the crankshaft.

• The : T40331/6  engages as shown in the flattened position -2- on the intake camshaft.
• The : T40331/7  engages as shown in the flattened position -1- on the exhaust camshaft.

-- Tighten the bolts -arrows- to 9 Nm.

TIP:

Courtesy of AUDI OF AMERICA, LLC

The : T90001  can only be inserted in one position

-- To counterhold on the affected camshaft adjuster, position the : T90001  with : VAS261001  , and loosen the control valve -1- with the : T90000  .

-- For reinstallation mark the camshaft adjuster to the camshafts using paint.

Procedures, where the Engine is NOT Removed:

Courtesy of AUDI OF AMERICA, LLC

-- Insert the : T10492  on the groove -1- in the vibration damper all the way in the hole -arrow- in the belt pulley side sealing flange. If necessary push the crankshaft slightly back and forth.

Procedure, if the Engine is Removed Due to Preliminary Work.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the plug.

-- Install the : T40069  in the hole and tighten to 20 Nm. If necessary push the crankshaft slightly back and forth.

Continuation:

Courtesy of AUDI OF AMERICA, LLC

-- Turn back the guide rail -2- in direction of -arrow- and pistons from the chain tensioner -1- using the : T03006  .

TIP:

The piston is lubricated with oil and can only be pushed back slowly by applying constant pressure.

-- Remove the control valves -1 and 2- and remove both camshaft adjusters.

Courtesy of AUDI OF AMERICA, LLC
