Camshaft Timing Chain, Removing From Camshafts, Cylinder Bank 2 (Left): Notes
WARNING: This page is about a different car, the 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Torque Wrench, 6-50Nm: VAG1331A
- Electronic Torque Wrench 3-60Nm: VAS6583
- Locking Pins: T03006
- Crankshaft Locking Pin: T40069 (with the engine removed)
- Wrench - 21mm: T40263
- Locking Pin: T10492
- Adapter: T40314
- Camshaft Positioning Tool: T40331
- Socket E24: T90000
- Counter Holder: T90001
- Counter Holder: T90002
- Socket : VAS261001
For the following procedure the camshaft timing chain remains on the engine.

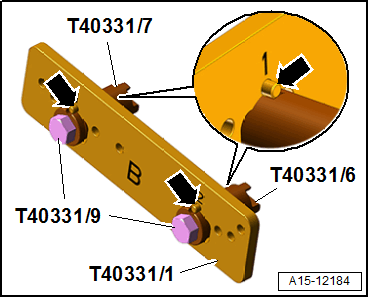

: T40331 , Preparing
- The lettering "B" on the : T40331/1 points forward.
- The : T40331/6 and : T40331/7 as well as the washers on the bolts : T40331/9 must be positioned using the alignment pins -arrows-.
-- Tighten the bolts hand-tight.
