Cam Actuator, Removing And Installing, Cylinder Bank 1 (Right): Removing

WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

Cylinder 2 Intake Cam Actuator 1 -F452- / Cylinder 3 Intake Cam Actuator 1 -F456- :

Courtesy of AUDI OF AMERICA, LLC

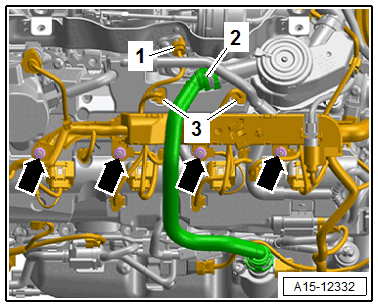

-- Press the release buttons on both sides and remove the hose -2- for the crankcase ventilation.

-- Disconnect the connectors and free up the wires:

1 -

For Ignition Coil 2, 3 and 4 with Power Output Stage -N127- / -N291- / -N292-

3 -

For the Cylinder 2 Intake Cam Actuator 1 -F452- / Cylinder 3 Intake Cam Actuator 1 -F456- :

Cylinder 2 Exhaust Cam Actuator 1 -F454- / Cylinder 3 Exhaust Cam Actuator 1 -F458-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors:

1 -

For the Engine Cover Temperature Sensor -G765-

3 -

For the Cylinder 2 Exhaust Cam Actuator 1 -F454- / Cylinder 3 Exhaust Cam Actuator 1 -F458-

-- Press the release buttons on both sides and remove the hose -2- for the crankcase ventilation.

-- Remove the nuts -arrows- and push the wiring duct slightly to the side.

Cylinder 2 Exhaust Camshaft Adjuster 1 -F454- :

-- Remove the cylinder bank 1 (right) oil separator. Refer to OIL SEPARATOR, REMOVING AND INSTALLING .

Continuation for All Camshaft Adjusters:

All additional procedures are described. Refer to CAM ACTUATOR, REMOVING AND INSTALLING .
