Camshaft Timing Chain, Removing From Camshafts, Cylinder Bank 2 (Left): Removing

WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the left bottom air duct pipe. Refer to LOWER AIR DUCT PIPES, REMOVING AND INSTALLING .

-- Release the catches -1 and 3- and remove the coupling -2- for the release cables from the lock carrier -4- and press toward the front.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -3- and move the bracket to the side.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screw -2- and remove the oil dipstick and guide tube.

-- Always seal off any openings with plugs that are thoroughly cleaned from the :VAS6122 .

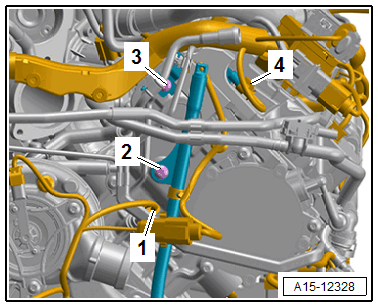

-- Disconnect the connectors.

1 -

For the Motor Temperature Sensor -G407-

4 -

For the Camshaft Position Sensor 4 -G301-

All additional procedures are described. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .
