Selector Mechanism, Removing And Installing, Vehicles Without Selector Lever Boot: Removing

-- Remove the selector lever handle. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .

-- Remove the center console cover. Refer to CENTER CONSOLE COVER, REMOVING AND INSTALLING .

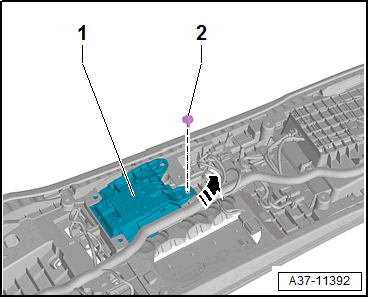

-- Remove the bolt -2-.

Courtesy of AUDI OF AMERICA, LLC

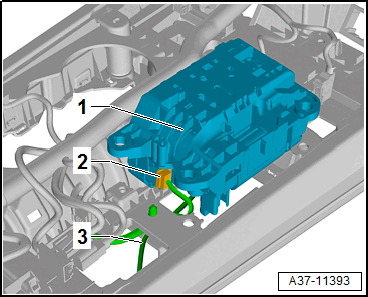

-- Remove the selector mechanism -1- in the direction of -arrow- from the center console insert until the connector is accessible.

-- Release and disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the selector mechanism -1- with wiring harness -3-.
