Front Parking Lock Emergency Release Cable, Removing And Installing: Installing

Courtesy of AUDI OF AMERICA, LLC

Install in the reverse order of removal while noting the following:

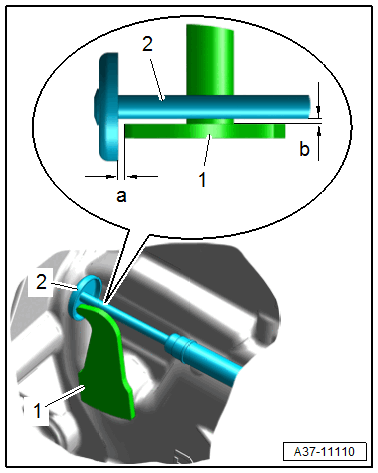

-- Make sure that the distance between the emergency release cable -2- and lever -1- is maintained.

• Dimension -a- = minimum 1 mm.
• Dimension -b- = minimum 1 mm.

-- Attach the rear emergency release cable -2- to the front emergency release cable -1- from the top in direction of -arrow A-

Fig 1: Identifying Emergency Release Cable

Courtesy of AUDI OF AMERICA, LLC

-- Install the sleeve -3- until it engages in direction of -arrow B-.

-- Install tunnel crossmember. Refer to TUNNEL CROSSMEMBER, REMOVING AND INSTALLING .

-- Check the parking lock emergency release. Refer to EMERGENCY RELEASE FROM P .
