Overview - Parking Lock Emergency Release

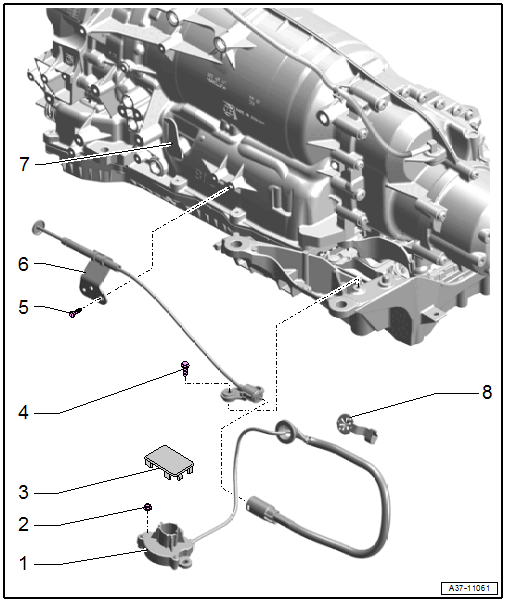

Fig 1: Exploded View Of Parking Lock Emergency Release

Courtesy of AUDI OF AMERICA, LLC

1. Rear Emergency Release Cable
   • For the parking lock
   • Do not bend or kink
   • Removing and Installing. Refer to REAR PARKING LOCK EMERGENCY RELEASE CABLE, REMOVING AND INSTALLING .
2. Nut
   • 4 Nm
   • Quantity: 2
3. Cover
4. Bolt
   • 9 Nm
5. Bolt
   • 9 Nm
   • Quantity: 2
6. Front Emergency Release Cable
   • For the parking lock
   • Do not bend or kink
   • Removing and Installing. Refer to FRONT PARKING LOCK EMERGENCY RELEASE CABLE, REMOVING AND INSTALLING .
7. Shift Lever
   • For the parking lock emergency release
8. Clip
   • Replace after removing
   • For the selector lever cable
