Securing On Engine And Transmission Holder

Special tools and workshop equipment required

Holding Plate:VW309A

Fig 1: Holding Plate VW 309
Courtesy of AUDI OF AMERICA, LLC
Engine and Gearbox Bracket:VAS6095A

Fig 2: Engine And Transmission Holder
Courtesy of AUDI OF AMERICA, LLC

Procedure

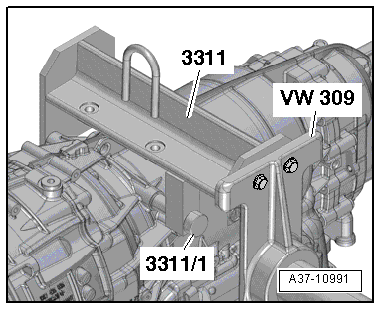

Fig 3: Identifying Support Tool 3311, Bolt 3311/1 And Holding Plate VW 309

Courtesy of AUDI OF AMERICA, LLC

Hold the transmission with the Shop Crane:VAS6100 . Refer to TRANSMISSION, TRANSPORTING .

-- Attach the Holding Plate:VW309A to the Hook And Support Tool:3311 .

-- Place the transmission using the Shop Crane:VAS6100 in the Engine and Gearbox Bracket VAS6095A:VAS6095A .

NOTE:

The vents for the transmission housing and final drive must be closed before turning a filled transmission with ATF pan upward on the engine/transmission holder.
