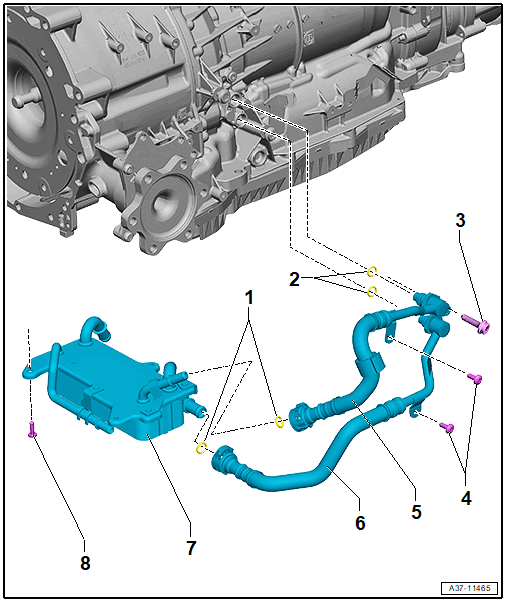

Overview - ATF Circuit, TFSI Engine, AUDI Q8
CAUTION:
Risk of damaging the transmission.
- Remove all the plugs on the ATF lines and on the transmission that were installed during removal.
- The ATF cooling function will not work and the transmission will be damaged if the plugs are forgotten.
- O-Rings
- Replace if the ATF line leaks
- Coat with ATF before installing
- O-Rings
- Replace if the ATF line leaks
- Coat with ATF before installing
- Bolt
- 20 Nm
- Bolt
- 8 Nm
- Quantity: 2
- ATF Lines
- Install all the way by hand with a new O-ring
- Removing and Installing. Refer to ATF LINES, REMOVING AND INSTALLING .
- Cleaning. Refer to Cleaning .
- ATF Lines
- Install all the way by hand with a new O-ring
- Removing and Installing. Refer to ATF LINES, REMOVING AND INSTALLING .
- Cleaning. Refer to Cleaning .
- ATF Cooler
- Removing and Installing. Refer to ATF COOLER, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Quantity: 3
