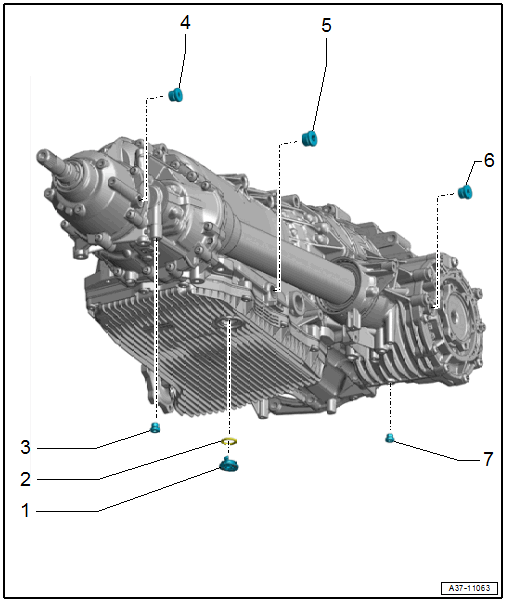

Overview - ATF Circuit, Drain And Plug

Courtesy of AUDI OF AMERICA, LLC

1. ATF Drain Plug
   • Tighten all the way
2. O-Ring
   • Replace after removing
3. Drain Plug
   • 12 Nm
   • Replace after removing
   • For the transmission fluid inside the transfer case
4. Plug
   • 27 Nm
   • Replace after removing
   • For the inspection and fill hole
   • For the transmission fluid inside the transfer case
5. Plug
   • 30 Nm
   • Replace after removing
   • For the ATF check and fill hole
6. Plug
   • 27 Nm
   • For the inspection and fill hole
   • For the gear oil inside the front final drive
7. Drain Plug
   • 10 Nm
   • For the gear oil inside the front final drive

Disconnect the ATF line

Fig 1: Disconnect the ATF Line

Courtesy of AUDI OF AMERICA, LLC

-- Release the clip -1- from the connector coupling -2- in direction of -B arrows- and lift in direction of -A arrows-.

-- Remove the connector coupling.

Bleed Pipe Length, Measuring on Oil Filler:VAS6262A  and Shortening if Necessary

Fig 2: Identifying Shortening Pipe On Adapter For Oil Filling VAS 6262 A

Courtesy of AUDI OF AMERICA, LLC

The pipe must be shorted to dimension -a- so that the bleed pipe on the adapter for the Oil Filler:VAS6262A  does not touch the bottom on some containers.

• Dimension -a- = 210 mm.

-- Mark the dimension on the bleed pipe and shorten it using the Brake Line Tool Kit - Pipe Cutter:VAS6056/2  .

Fig 3: Cutting Pipe

Courtesy of AUDI OF AMERICA, LLC

-- Clean the Oil Filler:VAS6262A  .
