ATF Cooler, Removing And Installing: Removing
-- Remove the subframe crossbrace. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .
CAUTION:
Risk of damaging the suspension components.
- Do not rest the vehicle on its wheels if the subframe mount, the steering gear or the subframe crossbrace are not installed correctly.
-- Place the Used Oil Collection and Extraction Unit:SMN372500 under the transmission.

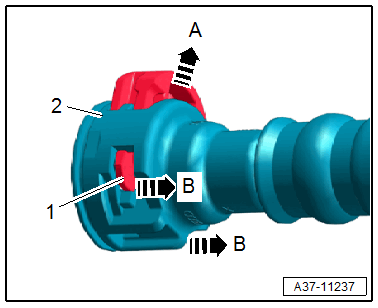

-- Disconnect the ATF lines -1 and 4-. Refer to Figure.
NOTE:
Place a clean cloth under the coupling points to catch the escaping coolant.
-- Loosen the hose clamps -2 and 3- and then disconnect and remove the coolant hoses with Hose Clamps - Up To 25mm:3094 .
-- Remove the bolts -arrows- and remove the ATF cooler.
