Spring, Removing And Installing, Air Spring: Removing
- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
-- Bleed the air suspension system. Refer to AIR SUSPENSION SYSTEM, FILLING AND BLEEDING .
-- Remove the rear wheel. Refer to WHEELS AND TIRES .
-- Remove the drive axle. Refer to DRIVE AXLE, REMOVING AND INSTALLING .
-- Unclip the cap -2-.
-- Release the catches -arrows- and free up the air spring -3- on the lower transverse link -1-.

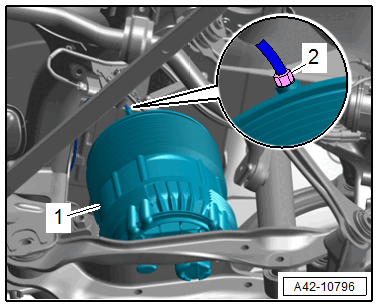

-- Remove the connecting piece -2- from the rear air spring.
-- If the air line is removed from a component, check if the cutting ring is seated on the air line.
-- Remove the air spring -1- downward.
