Sway Stabilization Control Module 2 -J1096-, REMOVING AND INSTALLING: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- and then remove the heat shield -1-.

-- De-energize the 48 Volt system. Refer to BATTERY, DISCONNECTING AND CONNECTING .

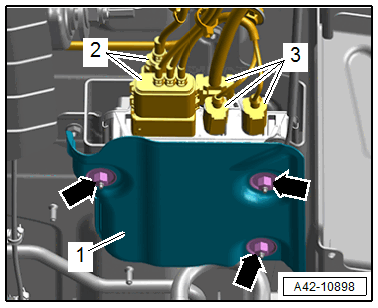

-- Disconnect the connectors -2 and 3- and free up the wires.

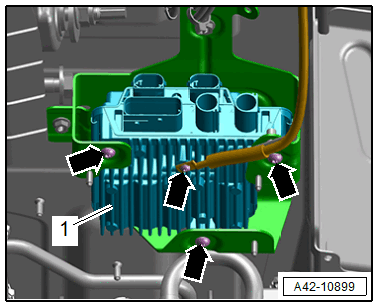

-- Remove the bolts -arrows- and remove the Sway Stabilization Control Module 2 -J1096- -1-.

Courtesy of AUDI OF AMERICA, LLC
