Stabilizer Bar, Removing And Installing, Without Sway Stabilization: Removing

-- Versions with coil springs: determine the curb weight position. Refer to WHEEL BEARING, LIFTING TO CURB WEIGHT POSITION, VEHICLES WITH COIL SPRING .

-- Versions with air suspension: determine the standard vehicle height. Refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION .

-- Remove the right diagonal brace. Refer to DIAGONAL BRACES, REMOVING AND INSTALLING .

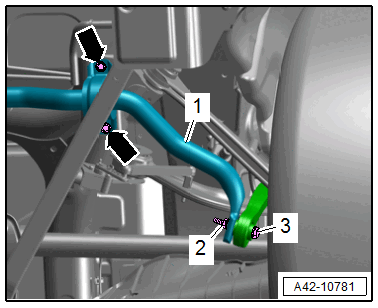

-- Remove the left and right bolts -arrows- and the nut -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -3- and stabilizer bar -1-.
