Wind Deflector, Removing And Installing, Fastening Pin Version With Hook: Removing

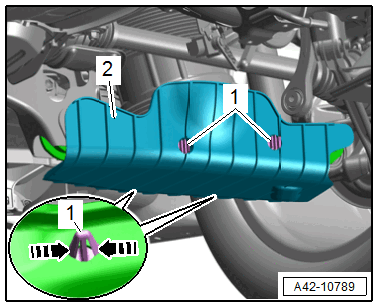

-- Press the expanding retainer together -arrows- and pull the fastening pins -1- out slightly.

GWWA42-10789Courtesy of AUDI OF AMERICA, LLC

-- Remove the fastening pins and wind deflector.
