Front Lower Transverse Link, Removing And Installing: Installing

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal and note the following:

-- Bring the lower transverse link into the installation position:

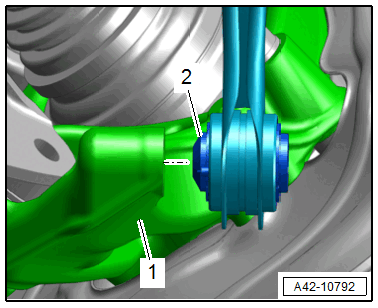

• The ball side -2- from the transverse link must engage in the wheel bearing housing -1-.

• Bonded rubber bushings have a limited range of rotation. Only tighten the suspension bolts when the vehicle is in curb weight position or at standard vehicle height.

• Overview table for when an axle alignment is needed. Refer to NEED FOR AXLE ALIGNMENT, EVALUATING .
