OVERVIEW - STABILIZER BAR, WITH SWAY STABILIZATION /Sway Stabilization Control Module -J924- IN VEHICLE INTERIOR ON RIGHT A-PILLAR

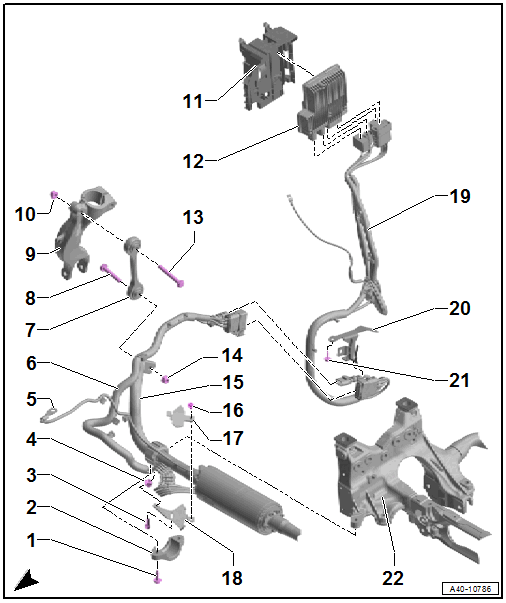

Fig 1: Exploded View Of Stabilizer Bar, With Sway Stabilization /Sway Stabilization Control Module -J924- In Vehicle Interior On Right A-Pillar

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 55 Nm
   • Always replace after removing
   • Remove and tighten evenly alternating from side to side.
2. Clamp
3. Bolt
   • 9 Nm
4. Nut
   • 9 Nm
5. Ground Wire
   • Tightening specification. Refer to the appropriate Wiring Diagram.
6. Wiring Harness to Stabilizer Bar with Sway Stabilization
   • The wiring harness may not be separated from the stabilizer bar with sway stabilization. The connector must not be removed from the stabilizer bar with sway stabilization.
7. Coupling Rod
   • Removing and Installing. Refer to COUPLING ROD, REMOVING AND INSTALLING .
8. Bolt
   • Always replace after removing
9. Shock Absorber Fork
   • Removing and Installing. Refer to SHOCK ABSORBER FORK, REMOVING AND INSTALLING .
10. Nut
    • 60 Nm +90°
    • Always replace after removing
11. Bracket
    • For Sway Stabilization Control Module -J924-
12. Sway Stabilization Control Module -J924-
    • Removing and Installing. Refer to Sway Stabilization Control Module -J924-, REMOVING AND INSTALLING .
    • Component location. Refer to the appropriate Wiring Diagram.
    • Component location on vehicles without a connector in the wiring harness in the right front wheel housing on the top of the A-pillar
    • Component location on vehicles with connector in the wiring harness in the vehicle interior on the center right A-pillar
13. Bolt
    • Always replace after removing
14. Nut
    • 40 Nm + 90°
    • Always replace after removing
15. Stabilizer Bar with Sway Stabilization
    • With Left Front Suspension Stabilization Actuator -V634-
    • With Right Front Suspension Stabilization Actuator -V635-
    • With rubber bushing
    • The rubber bushing cannot be replaced separately
    • When removing and installing the stabilizer bar with sway stabilization the wiring harness may not be removed from the stabilizer bar with sway stabilization. The connector must not be removed from the stabilizer bar with sway stabilization.
    • Stabilizer bar with sway stabilization, removing and installing. Refer to STABILIZER BAR, REMOVING AND INSTALLING, WITH SWAY STABILIZATION .
16. Nut
    • 40 Nm + 90°
    • Always replace after removing
17. Bracket
    • For the wiring harness
18. Bracket
    • For the wiring harness
19. Wiring Harness to Sway Stabilization Control Module -J924-
20. Bracket
    • For connector
21. Bolt
    • 8 Nm
22. Subframe
