Special Tools

Special tools and workshop equipment required

• Shock Absorber Set: T10001

  Courtesy of AUDI OF AMERICA, LLC

• Tensioning Strap: T10038
  Fig 1: Identifying Tensioning Strap T10038

  Courtesy of AUDI OF AMERICA, LLC
• Tripod Joint Tool: T10065
  Fig 2: Assembly Tool T10065

  Courtesy of AUDI OF AMERICA, LLC
• Engine/Gearbox Jack Adapter - Wheel Hub Support: T10149

  Courtesy of AUDI OF AMERICA, LLC

• Air Spring Strut Adapter: T10157
  Fig 3: Adapter T10157/1

  Courtesy of AUDI OF AMERICA, LLC

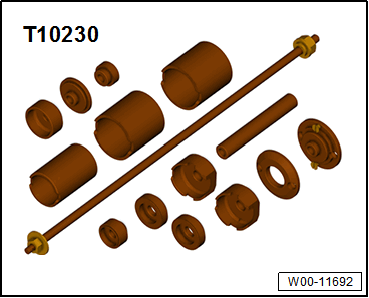

• Hydraulic Press - Bushing Assembly Tool Kit : T10230

  Courtesy of AUDI OF AMERICA, LLC

• Socket AF 24 mm: T10361A
  Fig 4: Identifying Socket AF 24 mm T10361A

  Courtesy of AUDI OF AMERICA, LLC
• Ball Joint Removal Tool: T10444
  Fig 5: Ball joint puller T10444

  Courtesy of AUDI OF AMERICA, LLC
• Triple Roller Assembly Tool: T40018
  Fig 6: Assembly Device T40018 For Triple Roller Joint AAR 3300 i

  Courtesy of AUDI OF AMERICA, LLC
• Puller - Differential Bearing: T40032
  Fig 7: Assembly Tool T40032

  Courtesy of AUDI OF AMERICA, LLC
• Gearbox Support: T40173
  Fig 8: Gearbox Support T140173

  Courtesy of AUDI OF AMERICA, LLC
• Triple Roller Assembly Tool: T40236
  Fig 9: Identifying Triple Roller Assembly Tool T40236

  Courtesy of AUDI OF AMERICA, LLC
• Ball Joint Splitter : T40277

  Courtesy of AUDI OF AMERICA, LLC

• Torque Wrench 1331 5-50Nm: VAG1331
  Fig 10: Identifying Torque Wrench

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 1332 40-200Nm: VAG1332
  Fig 11: Identifying Torque Wrench 1332

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 1332 Insert - Ring Wrench - 21mm: VAG1332/7

  Courtesy of AUDI OF AMERICA, LLC

• Torque Wrench 1410: VAG1410
  Fig 12: Identifying Torque Wrench 1410 VAG1410

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 80-400Nm: VAG1576
  Fig 13: Identifying Torque Wrench V.A.G 1576

  Courtesy of AUDI OF AMERICA, LLC
• Clampling Pliers: VAG1682A

  Courtesy of AUDI OF AMERICA, LLC

• Spring Compressor Kit: VAG1752
  Fig 14: Identifying Spring Compressor Kit V.A.G 1752

  Courtesy of AUDI OF AMERICA, LLC
• Spring Compressor Kit - Spring Retainer w/ Inserts: VAG1752/6

  Courtesy of AUDI OF AMERICA, LLC

• Torque Wrench 1783 - 2-10Nm: VAG1783  for vehicles with air suspension.
  Fig 15: Identifying Torque Wrench

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 1783 - Open Jaw - 10mm: VAG1783/1  for vehicles with air suspension.
  Fig 16: Identifying V.A.G 1783/1

  Courtesy of AUDI OF AMERICA, LLC
• Locking Pliers: VAS6199

  Courtesy of AUDI OF AMERICA, LLC

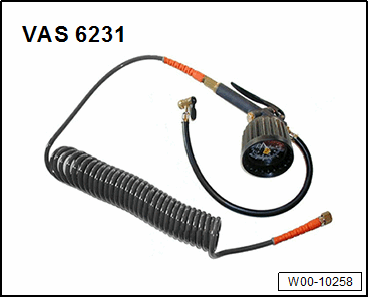

• Air Suspension Strut Charger: VAS6231
  Fig 17: Air Spring Charging Unit VAS 6231

  Courtesy of AUDI OF AMERICA, LLC
• Engine and Gearbox Jack: VAS6931
  Fig 18: Engine and Gearbox Jack VAS6931 or VAG1383A

  Courtesy of AUDI OF AMERICA, LLC
• Press Plate: VW402
  Fig 19: Press Plate VW402

  Courtesy of AUDI OF AMERICA, LLC
• Press Piece - Rod: VW408A

  Courtesy of AUDI OF AMERICA, LLC

• Press Piece - Rod: VW411

  Courtesy of AUDI OF AMERICA, LLC

• Press Piece - Multiple Use: VW412
  Fig 20: Identifying Press Piece - Multiple Use VW412

  Courtesy of AUDI OF AMERICA, LLC
• Press Piece - 37mm: VW416B
  Fig 21: Press Piece - 37mm VW416 B

  Courtesy of AUDI OF AMERICA, LLC
• Press Piece - Multiple Use: VW447H

  Courtesy of AUDI OF AMERICA, LLC

• Bearing Installer - Ball Joint/Bushing/Bearing 2: VW459/2

  Courtesy of AUDI OF AMERICA, LLC

• Press Piece - 42mm: VW516
  Fig 22: Press Piece - 42 mm VW516

  Courtesy of AUDI OF AMERICA, LLC
• CV Joint Press Sleeve: VW522
  Fig 23: CV Joint Press Sleeve VW522

  Courtesy of AUDI OF AMERICA, LLC
• Slide Hammer Set: VW771
  Fig 24: Identifying Slide Hammer Set

  Courtesy of AUDI OF AMERICA, LLC
• Press Block : 40-204A
  Fig 25: Identifying Press Block 40 - 204 A

  Courtesy of AUDI OF AMERICA, LLC
• Pry Lever: 80-200
  Fig 26: Identifying Pry Lever

  Courtesy of AUDI OF AMERICA, LLC
• Bearing Installer - Wheel Bearing: 3144

  Courtesy of AUDI OF AMERICA, LLC

• Press Piece - Reverse Gear Syncro: 3296
  Fig 27: Press Piece - Reverse Gear Syncro 3296

  Courtesy of AUDI OF AMERICA, LLC
• Subframe Bushing Tool Kit: 3301

  Courtesy of AUDI OF AMERICA, LLC

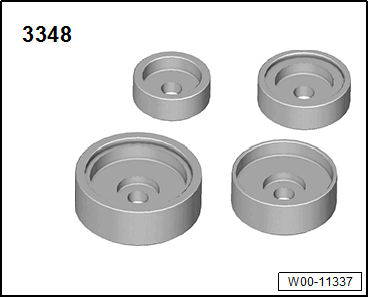

• Bearing Installer - Multiple Use: 3348

  Courtesy of AUDI OF AMERICA, LLC

• Spreader Tool: 3424

  Courtesy of AUDI OF AMERICA, LLC

• Not Illustrated:
• Locating Pins: T40327
• Torque Wrench 1331 Insert - Ring Wrench - 16mm: VAG1331/12
• Pneumatic Hydraulic Press: VAS6654
• Splitter VAS251405: VAS251405
• Splitter VAS251403: VAS251403
• Ball Joint Splitter : VAS251805
• Puller Set VAS701003: VAS701003
• Puller Set - Clamping Sleeve: VAS701003/1
• Puller Set - Threaded Spindle: VAS701003/2
• Puller Set - Clamping Handle: VAS701003/4
• Puller Set - Special Ring Spanner AF36: VAS701003/5
• Puller Set - Clamping Pliers, Diameter 66-70 mm: VAS701003/7
