Two-Piece SUBFRAME Shield, Removing And Installing

Special tools and workshop equipment required

• Torque Wrench: VAG1410

Shield Upper Section, Removing

Courtesy of AUDI OF AMERICA, LLC

-- Push the front wheels to the right.

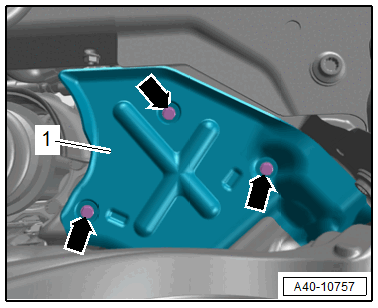

-- Remove the bolts -arrows- and the subframe shield upper section -1-.

Shield Lower Section, Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left transmission mount. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .

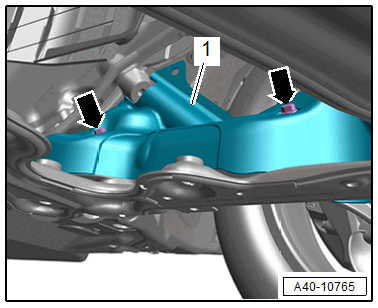

-- Remove the bolts -arrows- and the subframe shield lower section -1-.

Installing

Install in reverse order of removal.

Tightening Specifications

• Refer to OVERVIEW - SUBFRAME
