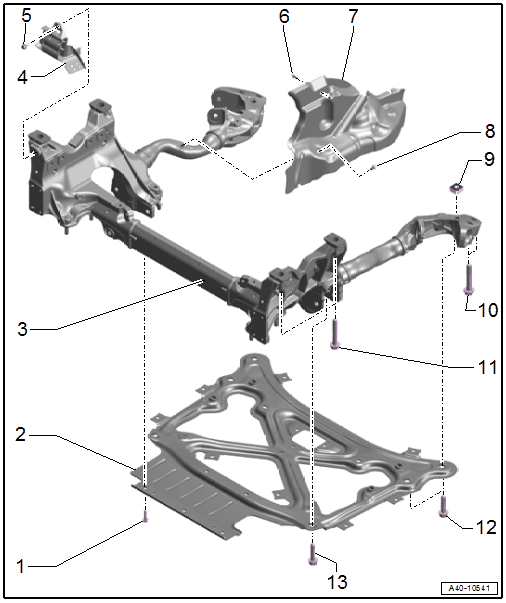

Overview - SUBFRAME, Versions Without Sway Stabilization
- Bolt
- 20 Nm
- Subframe Crossbrace
- Safety Precautions. Refer to SAFETY PRECAUTIONS WHEN WORKING ON SUBFRAME .
- Removing and Installing. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .
- Subframe
- Securing. Refer to SUBFRAME, SECURING .
- Lowering. Refer to SUBFRAME, LOWERING .
- Removing and Installing. Refer to SUBFRAME WITH STEERING GEAR, REMOVING AND INSTALLING .NOTE:
Perform a pre-adjustment on the subframe if it is being replaced or if it had to be removed in order to loosen the crossbrace Figure.
- Bracket
- For the wiring harness
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Shield
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to SUBFRAME SHIELD, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Square Nut
- Always replace after removing
- Bolt
- 130 Nm +180°
- Always replace after removing
- Remove and tighten together with -item 11- diagonally in steps
- Bolt
- 115 Nm +90°
- Always replace after removing
- Remove and tighten together with -item 10- diagonally in steps
- Bolt
- 90 Nm +135°
- 42 mm long
- Always replace after removing
- Bolt
- 90 Nm +90°
- 51 mm long
- Always replace after removing
