Guide Link Bonded Rubber Bushing, Removing And Installing

Special tools and workshop equipment required

• Press Plate: VW402
• Press Piece - Multiple Use: VW412
• Bearing Installer - Ball Joint/Bushing/Bearing 2: VW459/2
• Bearing Installer - Wheel Bearing: 3144
• Pneumatic Hydraulic Press: VAS6654
• Installation Lubricant: G 294 421 A1  . Refer to the Parts Information.

Bonded Rubber Bushing, Pressing Out

Courtesy of AUDI OF AMERICA, LLC

• The guide link is removed. Refer to GUIDE LINK, REMOVING AND INSTALLING

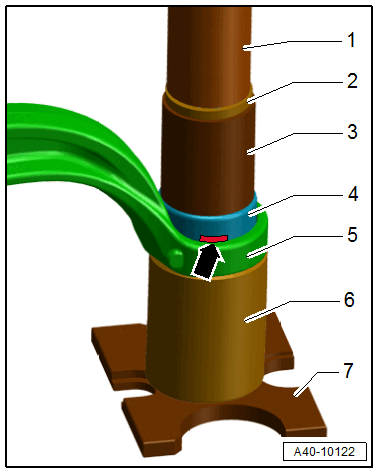

-- Mark the press-in depth -arrow- on the bonded rubber bushing -4-, for example using a waterproof felt-tip pen.

-- Arrange the special tools as shown.

1. : VAS6654  Punch
2. : VW412
3. : VW459/2
4. Bonded Rubber Bushing
5. Guide Link
6. : 3144
7. : VW402

• Hold the guide link firmly in position while pressing the bonded rubber bushing out and in.

-- Remove the bonded rubber bushing from the guide link.

Bonded Rubber Bushing, Pressing In

-- Transfer the mark for the press-in depth from the old bonded rubber bushing to the new one.

-- Apply a thin coat of Installation Lubricant: G 294 421 A1  to the new bonded rubber bushing.

Bonded rubber bushing installation position:

• The notch -1- is on the steering axle and faces inward to the guide link.
• The arrow -2- points inward to the guide link.

-- Insert the bonded rubber bushing in the guide link. Pay attention to the installation position.

Courtesy of AUDI OF AMERICA, LLC

-- Arrange the special tools as shown.

1. : VAS6654  Punch
2. : VW412
3. : VW459/2
4. Bonded Rubber Bushing
5. Guide Link
6. : 3144
7. : VW402

-- Press the bonded rubber bushing in the guide link, and do not tilt it.

-- Pay attention to the mark -arrow- for the press-in depth.

-- Check the press-in depth -a- of the bonded rubber bushing in the guide link.

• Dimension -a- = 23 mm.

-- If the value is not reached, press in the bonded rubber bushing again.
