Overview - Front Axle

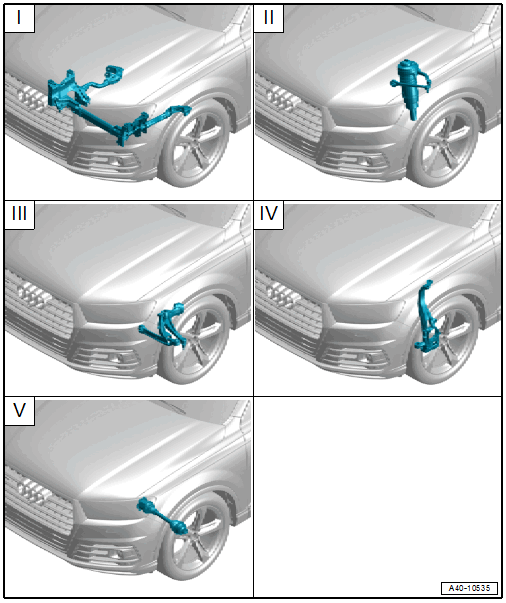

GWWA40-10535Courtesy of AUDI OF AMERICA, LLC
  1. I -  Refer to SUBFRAME
  2. II -  Refer to SUSPENSION STRUT AND UPPER CONTROL ARM
  3. III -  Refer to LOWER CONTROL ARM AND BALL JOINT
  4. IV -  Refer to WHEEL BEARING
  5. V -  Refer to DRIVE AXLE
