Drive Axle Heat Shield, Removing And Installing

Left Drive Axle Heat Shield

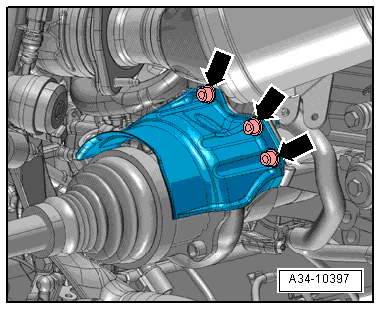

Fig 1: Identifying Bolts & Left Drive Axle Heat Shield
GWWA34-10397Courtesy of AUDI OF AMERICA, LLC
Component Tightening Specification
Bolts -arrows- 23 Nm

Right Drive Axle Heat Shield

Fig 2: Drive Axle Heat Shield
GWWA37-10841Courtesy of AUDI OF AMERICA, LLC
Component Tightening Specification
Bolts -arrows- 23 Nm
