Outer CV Joint, Removing

Courtesy of AUDI OF AMERICA, LLC

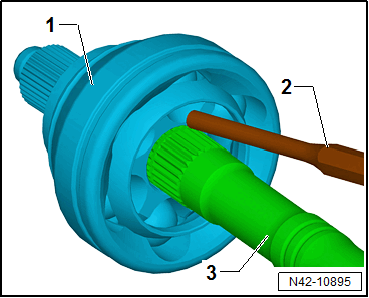

-- Clamp the drive axle -3- in a vise with protective covers.

-- Open both clamps and remove the CV boot from the outer joint.

-- Drive out the CV joint -1- from the drive axle with a copper or brass mandrel -2- on the inner ring.

-- Remove joint and CV boot.
