Solenoid Valve Block, Removing And Installing: Removing

• Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Vent the system. Refer to AIR SUSPENSION SYSTEM, FILLING AND BLEEDING .

-- Switch off the ignition.

-- Remove the nuts -arrows-, and remove the cover -1- for the air supply unit.

Courtesy of AUDI OF AMERICA, LLC

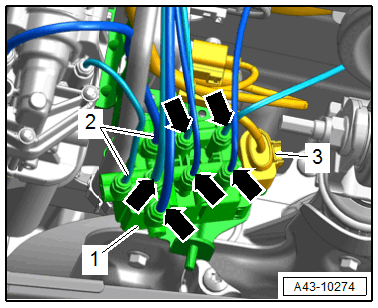

-- Disconnect the connector -3- from the solenoid valve -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the air lines -2- and -arrows- and protect them from dirt.

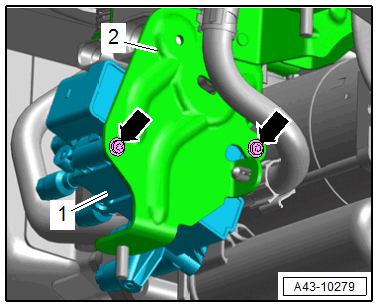

-- Remove the bolts -arrows- and the solenoid valve -1- from the bracket -2-.

Courtesy of AUDI OF AMERICA, LLC
