Air Supply Unit, Removing And Installing: Removing

• Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

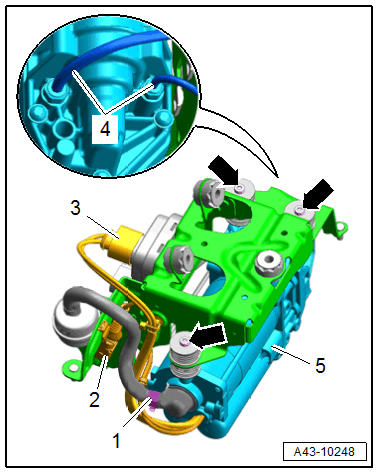

-- Disconnect the connector -3- and free up the wire.

Courtesy of AUDI OF AMERICA, LLC

-- If equipped, remove the connector -2- from the bracket and free it up.

-- Remove the air lines -4- from the solenoid valve.

-- Loosen the clamp -1- and remove the intake line.

-- Remove the bolts -arrows- and remove the air supply unit -5-.
