Air Supply Unit With Bracket, Removing And Installing: Removing

• Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Vent the system. Refer to AIR SUSPENSION SYSTEM, FILLING AND BLEEDING .

-- Switch off the ignition.

-- Remove the nuts -arrows-, and remove the cover -1- for the air supply unit.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3- from the solenoid valve -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the air lines -arrows- and protect them from dirt.

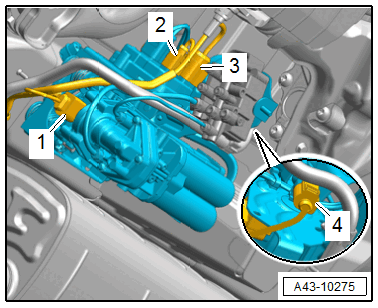

-- Disconnect the connectors -1, 2 and 3-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness.

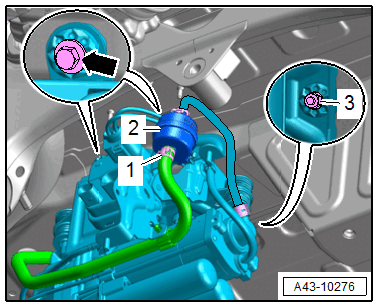

-- Loosen the clamp -1- and remove the intake air guide from the air filter -2- and free it up.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrow- and nut -3- and remove the bracket with the air supply unit.
