Steering Column, Removing And Installing: Removing

-- Remove the driver side footwell vent. Refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

-- Remove the steering column switch module. Refer to STEERING COLUMN SWITCH MODULE, REMOVING AND INSTALLING .

-- Remove the bolt -arrow- and remove the steering intermediate shaft universal joint -1- from the steering column -2-.

Courtesy of AUDI OF AMERICA, LLC

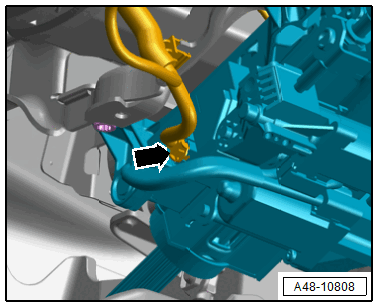

-- Versions with power steering column: disconnect the connector -arrow-.

Courtesy of AUDI OF AMERICA, LLC

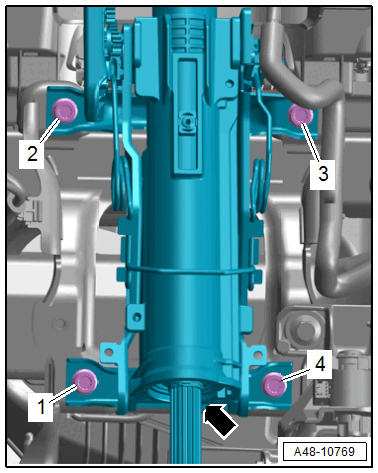

-- Remove the bolts in the sequence -4 to 1-. Support the steering column -arrow- from underneath with one hand while doing this.

Fig 1: Steering Column - Tightening Specification and Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the steering column from the rear and remove.

TIP:

The installation position of the version with a mechanical steering column is shown.
