Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING: Removing

-- Remove the steering column from the instrument panel crossmember and place in the driver footwell with the steering intermediate shaft attached. Refer to STEERING COLUMN, REMOVING AND INSTALLING .

-- Switch the ignition on.

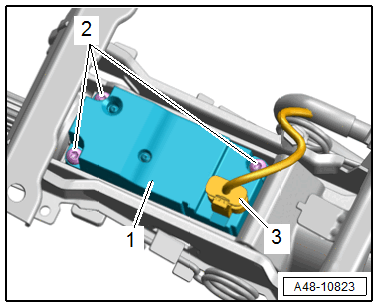

-- Remove the bolts -2-.

Courtesy of AUDI OF AMERICA, LLC

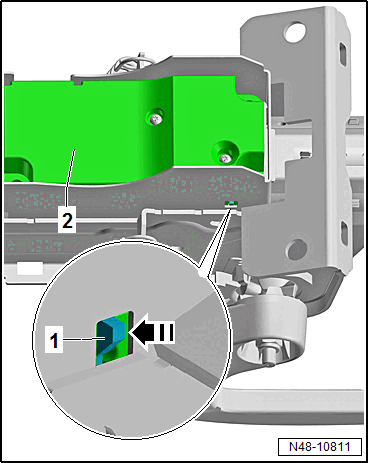

-- Push the tab -1- in the direction of the -arrow-. Remove the Electronic Steering Column Lock Control Module - J764- -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector from the Electronic Steering Column Lock Control Module -J764-.
