Overview - Front Three-Point Seat Belt, Market-Specific Rest Of World

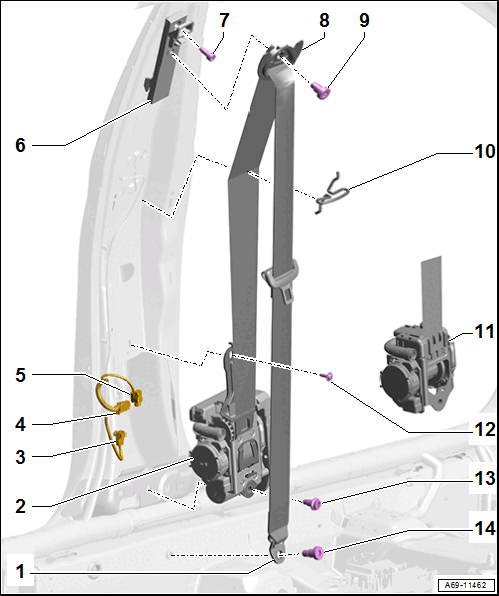

Fig 1: Exploded View Of Front Three-Point Seat Belt, Market-Specific Rest Of World

Courtesy of AUDI OF AMERICA, LLC

1. Belt End Fitting
   • Removing and Installing. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING, MARKET-SPECIFIC REST OF WORLD .
2. Automatic Belt Retractor with Electric Seat Belt Tensioner
   • Equipped on some models
   • with
     • Left Front Seat Belt Tensioner Control Module -J854- / Right Front Seat Belt Tensioner Control Module -J855-
     • Driver Belt Force Limiter -G551- / Front Passenger Belt Force Limiter -G552-
     • Driver Seat Belt Tensioner Igniter 1 -N153- / Front Passenger Seat Belt Tensioner Igniter 1 -N154-
   • The Left Front Seat Belt Tensioner Control Module -J854- / Right Front Seat Belt Tensioner Control Module -J855- must be adapted after replacing the automatic belt retractors using the Vehicle Diagnostic Tester.
   • Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING, REST OF WORLD MARKET VERSION .
3. Connector
   • For
     • Driver Seat Belt Tensioner Igniter 1 -N153-
     • Front Passenger Seat Belt Tensioner Igniter 1 -N154-
4. Connector
   • Equipped on some models
   • For
     • Left Front Seat Belt Tensioner Control Module -J854-
     • Right Front Seat Belt Tensioner Control Module -J855-
5. Connector
   • For
     • Driver Belt Force Limiter -G551-
     • Front Passenger Belt Force Limiter -G552-
6. Seat Belt Height Adjuster
   • Seat belt height adjuster must be replaced if the belt tensioner has deployed with the belt buckled
   • Removing and Installing. Refer to SEAT BELT HEIGHT ADJUSTER, REMOVING AND INSTALLING .
7. Bolt
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
   • 27 Nm
8. Seat Belt Relay
9. Bolt
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
   • 40 Nm
10. Seat Belt Guide
    • Do not jam or damage the seat belt webbing
    • Removing and Installing. Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .
11. Automatic Belt Retractor without Electric Seat Belt Tensioner
    • with
      • Driver Belt Force Limiter -G551- / Front Passenger Belt Force Limiter -G552-
      • Driver Seat Belt Tensioner Igniter 1 -N153- / Front Passenger Seat Belt Tensioner Igniter 1 -N154-
    • Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING, REST OF WORLD MARKET VERSION .
12. Bolt
    • 4.5 Nm
13. Bolt
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
    • 40 Nm
14. Bolt
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
    • 40 Nm
