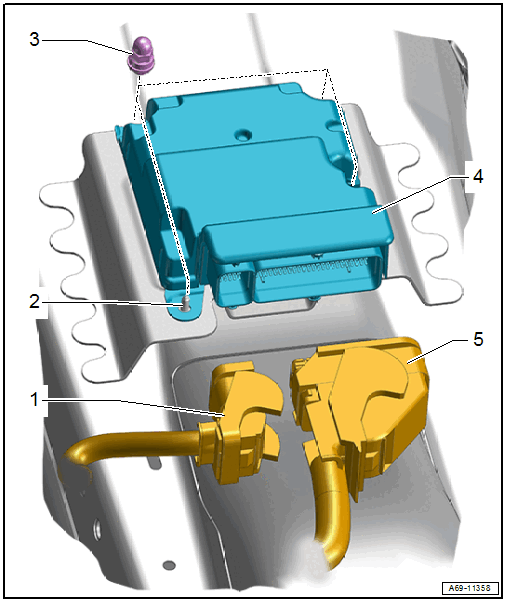

Overview - Airbag Control Module
- Connector
- Threaded Pins
- The thread must be paint and contaminant free, nut and ground pins serve as ground connection for the control module.
- Quantity: 4
- Nut
- 9 Nm
- The thread must be paint and contaminant free, nut and ground pins serve as ground connection for the control module.
- Quantity: 4
- Airbag Control Module -J234-
- The control module is grounded via the housing with the body.
- Removing and Installing. Refer to Airbag Control Module -J234-, REMOVING AND INSTALLING .
- Connector
