Upper Steering Column Trim Panel, Removing And Installing: Removing

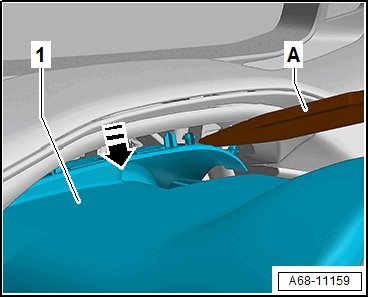

GWWA68-11159Courtesy of AUDI OF AMERICA, LLC

-- Position the steering wheel as far back and down as possible.

-- Pry off the gap cover -1- with the scraper -A- in the -direction of the arrow-.

-- Turn the steering wheel counter-clockwise 90° from the straight position.

-- Pry the upper steering column trim panel -1- with scraper no. 1 from the : VAS6845  carefully off the lower steering column trim panel in the -direction of the arrow A-.

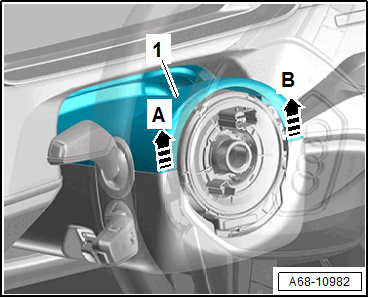

GWWA68-10982Courtesy of AUDI OF AMERICA, LLC

-- Turn the steering wheel back 180° and repeat the procedure on the opposite side direction of the -arrow B-.

-- Disengage the upper steering column trim panel -1- from the lower steering column trim panel and remove.
