Upper Steering Column Trim Panel, Removing And Installing: Installing
Install in the reverse order of removal while noting the following:
- Before installing, check all the fasteners for damage and replace if necessary.

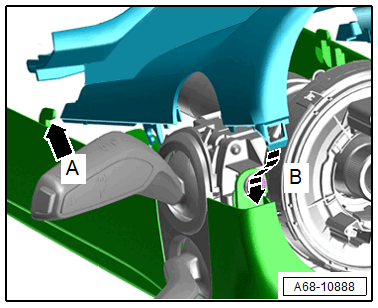

-- Next engage the front upper steering column trim panel in the pins -arrow A- of the lower steering column trim panel.
-- Clip in the retaining tabs from the upper steering column trim panel into the lower steering column trim panel direction of -arrow B-.
-- Pay attention that the steering column trim panels engage correctly in each other.
