Overview - Steering Column Trim Panel

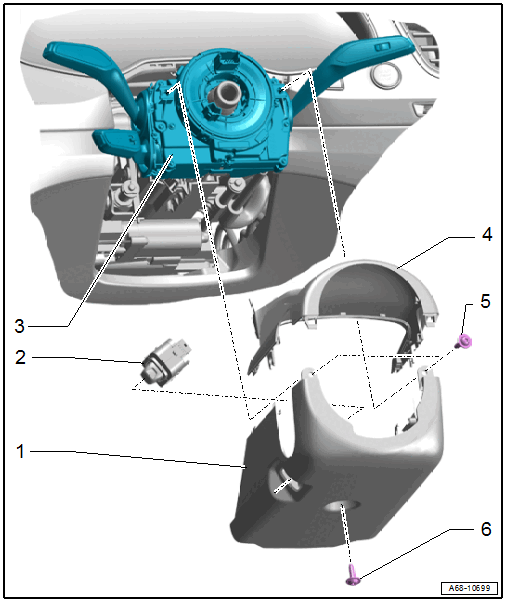

Fig 1: Exploded View Of Steering Column Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Lower Steering Column Trim Panel
- Removing and Installing. Refer to LOWER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .
Steering Column Adjustment Switch -E167-
- Equipped on some models
- Removing and Installing. Refer to STEERING COLUMN ADJUSTMENT SWITCH -E167-, REMOVING AND INSTALLING .
Steering Column Switch Module
- Overview. Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
Upper Steering Column Trim Panel
- Removing and Installing. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .
Bolt
- 1.5 Nm
- Quantity: 2
Bolt
- 1.5 Nm
