Overview - Instrument Panel Cover, Driver Side

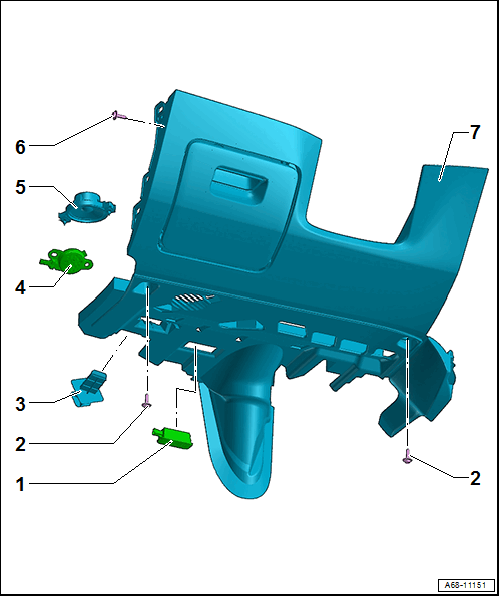

Fig 1: Exploded View Of Instrument Panel Cover, Driver Side

Courtesy of AUDI OF AMERICA, LLC

1. Left Front Footwell Illumination Bulb -L151-
   • Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL LAMPS .
2. Bolt
   • Quantity: 2
   • 3 Nm
3. Mount
   • for the instrument panel cover
4. Front Parking Aid Warning Buzzer - H22-
   • Removing and Installing. Refer to FRONT PARKING AID WARNING BUZZER -H22-, REMOVING AND INSTALLING .
5. Emergency Call Module Speaker -R335-
   • Removing and Installing. Refer to Mobile Online Services .
6. Bolt
   • 3 Nm
7. Driver Side Instrument Panel Cover
   • Removing and Installing. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
