Overview - Glove Compartment

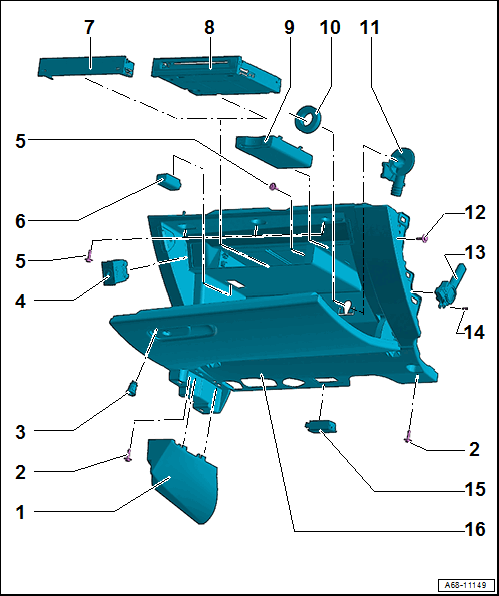

Fig 1: Exploded View Of Glove Compartment

Courtesy of AUDI OF AMERICA, LLC

Inner Front Passenger Side Cover
- For the instrument panel
- Removing and Installing. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
Bolt
- 3 Nm
- Quantity: 2
Glove Compartment Handle Lock Cylinder
- Glove Compartment Handle, Removing and Installing. Refer to GLOVE COMPARTMENT HANDLE, REMOVING AND INSTALLING .
- Removing and Installing. Refer to GLOVE COMPARTMENT HANDLE LOCK CYLINDER, REMOVING AND INSTALLING .
Front Passenger Airbag Deactivation Key Switch -E224-
- Equipped on some models
- Removing and Installing. Refer to FRONT PASSENGER AIRBAG DEACTIVATION KEY SWITCH, REMOVING AND INSTALLING .
Bolt
- 3 Nm
- Quantity: 4
Glove Compartment Lamp -W6-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL LAMPS .
Trim
- Equipped on some models
DVD Player -R7-
- Equipped on some models
- Removing and installing. Refer to DVD/CD Changer .
Chip Card Reader Control Module -J676-
- Market-Specific Version
- Component location overview. Refer to COMPONENT LOCATION OVERVIEW - NAVIGATION SYSTEM .
Glove Compartment Cooling Vent
- Equipped on some models
- Blind cover for vehicles without glove compartment cooling
Glove Compartment Cooling Connection
- Equipped on some models
Bolt
- 3 Nm
Damping Element
- For the glove compartment lid
- With Glove Compartment Lamp Switch -E26-
- Removing and Installing. Refer to GLOVE COMPARTMENT LID DAMPING ELEMENT, REMOVING AND INSTALLING .
Hinge Pin
- For the dampening mechanism
Right Front Footwell Illumination Bulb -L152-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL LAMPS .
Glove Compartment
- Removing and Installing. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
