Lower Steering Column Trim Panel, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Detach the upper steering column trim panel. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .

-- Turn the steering wheel counter-clockwise 90° from the straight position.

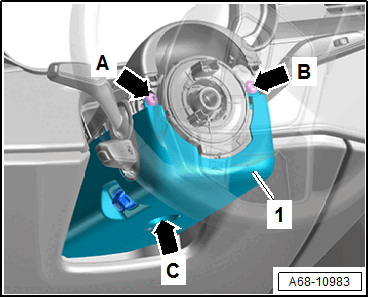

-- Remove the screw -arrow A-.

-- Turn steering wheel back 180° and remove screw -arrow B- on the opposite side.

-- Remove the bolt -arrow C- and remove the lower steering column trim panel -1-.

-- Disengage the cable holder on the steering column trim panel.

-- If equipped, release and disconnect the connectors.
