Glove Compartment, Removing And Installing: Removing
Versions with Front Passenger Airbag Deactivation Key Switch -E224- :
-- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
Risk of airbag deployment.
Risk of injury.
- Check if the airbag indicator lamp turns on or blinks.
- If the airbag indicator lamp turns on or blinks, the DTC memory must be read.
- If >>short circuit to positive<< is a DTC memory entry, disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .
- If there is a DTC memory entry, the Guided Fault Finding instructions on the Vehicle Diagnostic Tester must always be followed.
- If the airbag indicator lamp does not turn on or blink, or there is no DTC memory entry with >>short circuit to positive<< : switch off the ignition, keep the ignition key outside of the vehicle and wait 10 seconds.
Continuation for All Vehicles
-- Remove the front passenger side instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .
-- Open the glove compartment lid.
-- Market-specific versions: remove the Chip Card Reader Control Module -J676-. Refer to COMPONENT LOCATION OVERVIEW - NAVIGATION SYSTEM .
-- Equipped on some models: remove the DVD Player -R7-. Refer to DVD/CD Changer .

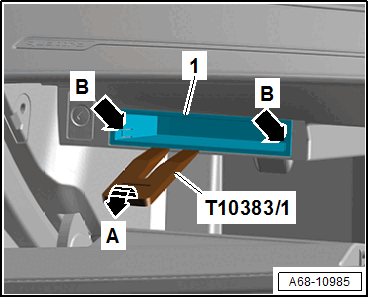

-- Equipped on some models: remove the storage compartment (cover) -1- in the glove compartment using the Wedge: T10383/1 -arrow A- by carefully releasing the catches -B arrows- one after the other with a small flat-head screwdriver.

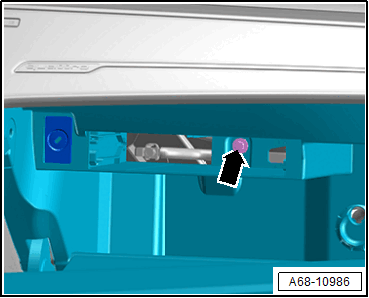

-- Remove the bolt -arrow-.

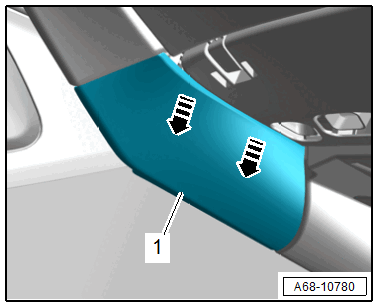

-- Unclip the inner front passenger side cover -1- from the instrument panel cover using the Trim Removal Wedge: 3409 in the direction of the -arrow-.

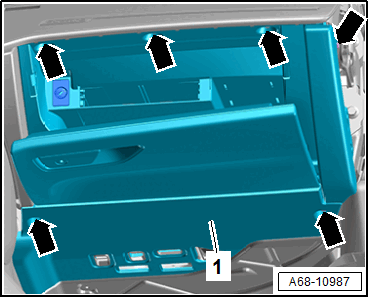

-- Remove the bolts -arrows-.

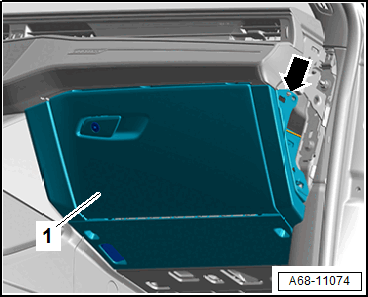

-- Disengage the glove compartment -1- at the side from the pin -arrow-.
-- Slightly remove the glove compartment -1- carefully.
-- Release and disconnect the connector for the footwell lighting and the glove compartment lamp.
Vehicle versions with Front Passenger Airbag Deactivation Key Switch -E224-
Pyrotechnical components can deploy unintentionally.
Risk of injury.
- Discharge the static electricity: quickly touch the door striker.
-- Press the catch -1- in the direction of the -arrow- until the connector disengages.
-- Disconnect the connector -2-.
-- Ignore -items 3, 4 and 5-.
