Glove Compartment Lid, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- Place the glove compartment on a soft and clean surface.

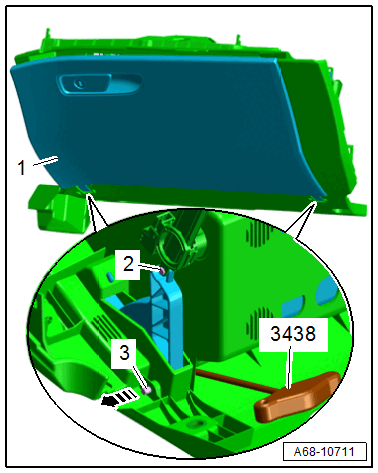

-- Remove the hinge pin -2- for the glove compartment lid damping element -1-.

-- Press out the hinge pin -3- for the glove compartment lid using the T-Handle Hook: 3438  (or another suitable tool) in the direction of the -arrow- and pull it out using pliers.

-- Repeat the procedure on the opposite hinge pin.

-- Remove the glove compartment lid -1- from the glove compartment.
