Glove Compartment Handle, Removing And Installing: Removing

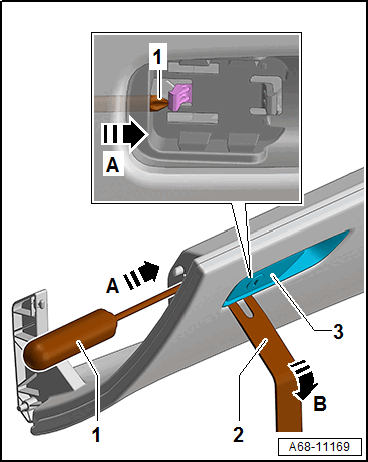

GWWA68-11169Courtesy of AUDI OF AMERICA, LLC

-- Open the glove compartment lid.

-- Release the hooks for the glove compartment handle in direction of -arrow A- through the opening on the side of the glove compartment lid with a small screwdriver -1- (approximately 80 mm long) or Torx screwdriver T10 (approximately 80 mm long).

-- At the same time, unclip the glove compartment handle -3- carefully with the Pry Lever -2- in direction of -arrow B-.

-- Press the glove compartment handle and release retaining the hook -1- at the side of the glove compartment opener using a screwdriver.

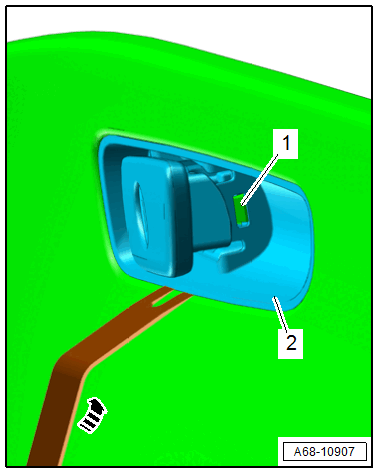

GWWA68-10907Courtesy of AUDI OF AMERICA, LLC

-- Pry the glove compartment handle -2- carefully off the glove compartment lid direction of the -arrow- with the Pry Lever: 80-200  .
