Glove Compartment Handle Lock Cylinder, Removing And Installing: Removing

-- Remove the glove compartment handle. Refer to GLOVE COMPARTMENT HANDLE, REMOVING AND INSTALLING .

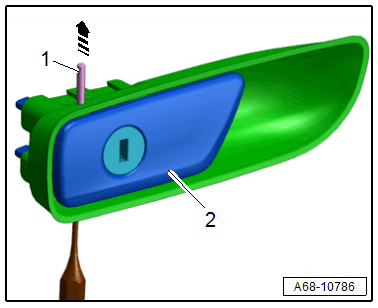

-- Drive out the axle -1- from the locating bore with a suitable punch in the direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the glove compartment handle -2- with the lock cylinder.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Improper handling increases the risk of destroying the lock cylinder.

The retainers and pressure springs could fall out.

- Remove and install the lock cylinder only with the key inserted correctly.

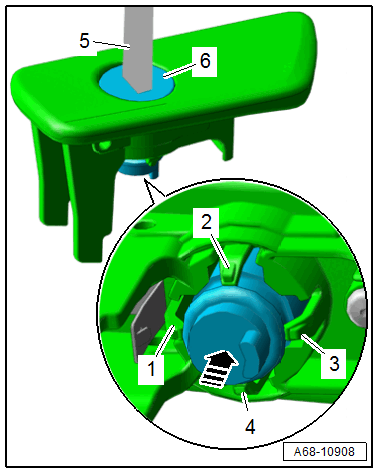

-- Insert the key -5- into the lock cylinder -6-.

-- Carefully release the catches -1 through 4- one after the other using a small screwdriver and remove the lock cylinder -6- at the same time direction of the -arrow-.
