Glove Compartment Handle Lock Cylinder, Removing And Installing: Installing

Courtesy of AUDI OF AMERICA, LLC

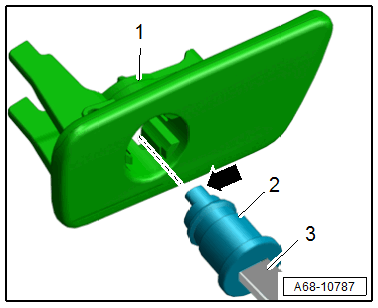

-- Insert the key -3- into the new lock cylinder -2-.

-- If equipped, remove the protective cap from the new lock cylinder.

-- Insert the lock cylinder into the glove compartment handle -1- until it engages. Pay attention to the installation position of the pin.

• The pin -arrow- on the lock cylinder points upward.

Further installation is the reverse order of removal.
