Driver Side Instrument Panel Cover, Removing And Installing: Removing
-- Remove the driver side instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

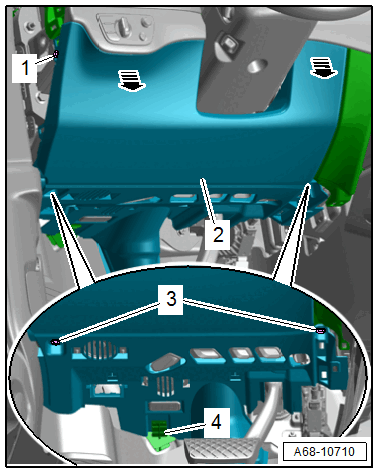

-- Remove the side bolt -1-.
-- Remove the lower bolts -3-.
-- Unclip the driver side instrument panel cover -2- from the instrument panel by hand direction of the -arrow-.
-- Remove the driver side instrument panel cover from the mount -4-.
-- Equipped on some models: release and disconnect the connectors for parking aid, footwell lamp and emergency call speaker.
-- Disengage the diagnostic connection on the instrument panel cover.
