Sun Shade, Removing And Installing, Side Window: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Lower the rear door window.

-- Close the sun shade approximately to ³ /₄ .

-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Unclip the sun shade from the mount -2- upward from the push rod -1- direction of the -arrow-.

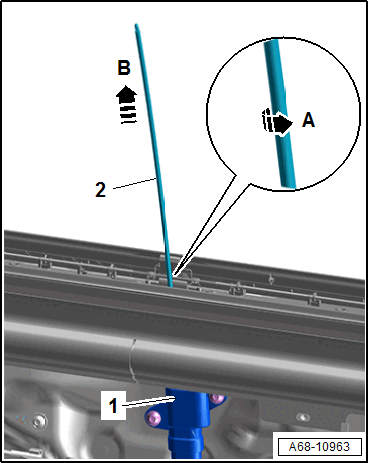

-- Turn the push rod -2- approximately 90° on it axis direction of -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the push rod upward from the engine -1- for the sun shade direction of -arrow B- by leaving the push rod turned approximately 90° on its axis.

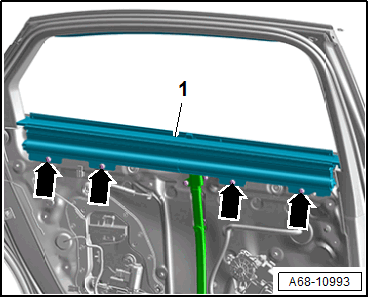

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the sun shade -1- from the door.
