Sun Shade, Removing And Installing, Side Window: Installing

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal and note the following:

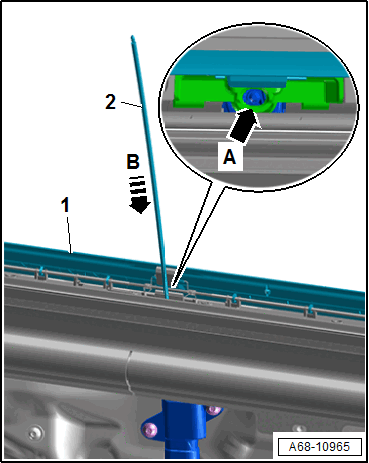

-- Open the sun shade trim -1- and push the push rod -2- through the hole -arrow A- in the mount in the sun shade motor direction of -arrow B-.

-- Push the push rod downward and turn it slightly on its axis until there is noticeable play.

-- Pull on the push rod to make sure it is secure.

-- Clip the sun shade in the push rod.
