Sun Shade, Removing And Installing, Rear Window: Removing

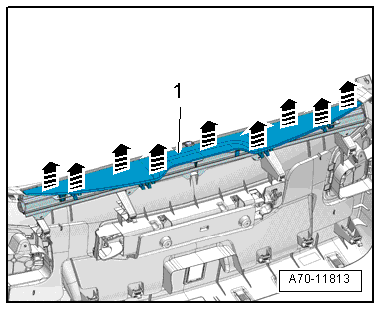

Fig 1: Unclipping Cover From Rear Window Shade -1- Using Trim Removal Wedge 3409 -Arrows- And Remove It

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

-- Unclip the cover -1- with the : 3409  from the sun shade -arrows- and remove.

-- Remove the bolts -2 and 3-.

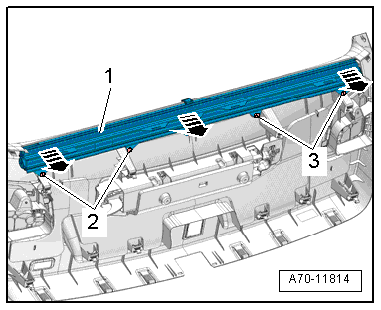

Fig 2: Removing Rear Window Shade -1- From Lower Rear Lid Trim Panel -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the sun shade -1- from the rear lid lower trim panel -arrows-.
