Screen Separator Bracket, Removing And Installing: Removing

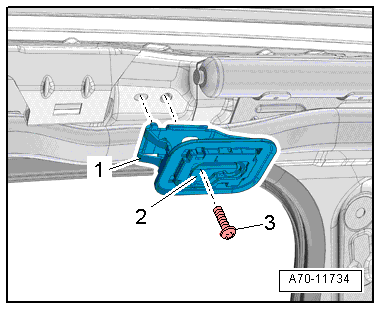

Fig 1: Pressing Cap -2- Toward Rear And Remove Bolt -3-

Courtesy of AUDI OF AMERICA, LLC

-- Lower the headliner. Refer to HEADLINER, LOWERING .

-- Push the cover -2- toward the rear, and remove the bolt -3- behind it.

-- Remove the mounting eye -1- for the screen separator.
