Overview - Sun Visors

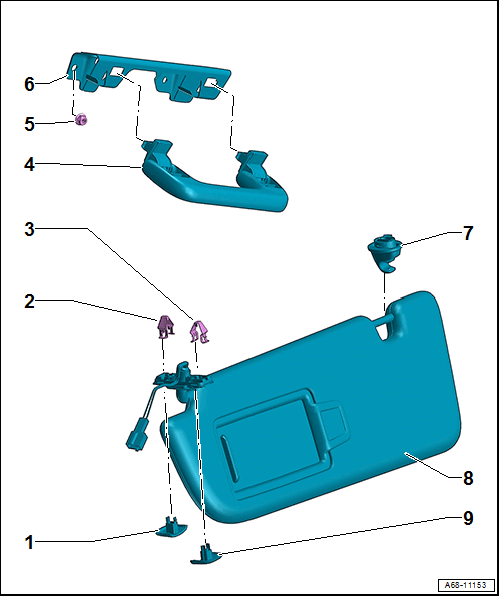

Fig 1: Exploded View Of Sun Visors

Courtesy of AUDI OF AMERICA, LLC

Cap
Clip
Clip
Roof Grab Handle
- Removing and Installing. Refer to ROOF GRAB HANDLE, REMOVING AND INSTALLING .
- Quantity: 2 each
Nut
- 10 Nm
- Quantity: 2 each
Roof Grab Handle Bracket
- Removing and Installing. Refer to ROOF GRAB HANDLE BRACKET, REMOVING AND INSTALLING .
Sun Visor Center Bearing
- Removing and Installing. Refer to SUN VISOR CENTER SUPPORT, REMOVING AND INSTALLING .
Sun Visor
- Removing and Installing. Refer to SUN VISOR, REMOVING AND INSTALLING .
Cap
