Overview - Sun Shade, Rear Window

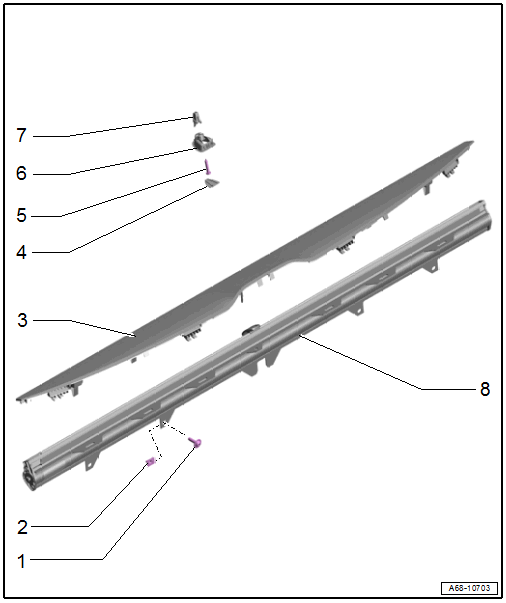

Fig 1: Exploded View Of Sun Shade, Rear Window

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 3 Nm
- Quantity: 4
Spring Nut
- Installed in the rear lid trim panel
- Quantity: 4
Sun Shade Cover
- Removing and Installing. Refer to SUN SHADE, REMOVING AND INSTALLING, REAR WINDOW .
Sun Shade Mounting Eye
Bolt
- 2 Nm
Mounting Eye Bracket
Expanding Nut
- Clip into rear lid
Sun Shade
- Removing and Installing. Refer to SUN SHADE, REMOVING AND INSTALLING, REAR WINDOW .
