Luggage Compartment Cover Drive Unit -VX68-, REMOVING AND INSTALLING: Installing

Courtesy of AUDI OF AMERICA, LLC

-- Attach the guide rails -1- with the roll cover motor.

-- Attach the guide rail -1- with bolts -3 and 4- and nut -2-, but do not tighten.

-- Repeat the process on the opposite side.

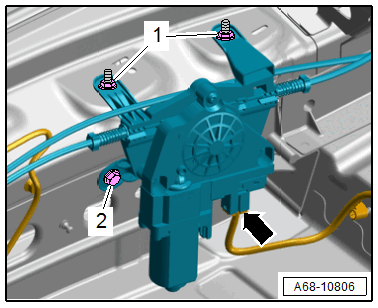

-- Tighten the nuts and bolt in the sequence -1 and 2- on the roll cover motor.

-- Connect the connector -arrow-.

-- Tighten the bolts and nut to the guide rail -1- in the sequence -2, 3 and 4-.

Courtesy of AUDI OF AMERICA, LLC

-- Clip the release cables for the guide rail to the brackets -arrows-.

-- Repeat the process on the opposite side.

-- Install the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Clip both carriers for the roll cover -2- into the guide rail and secure with an expander pin -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Perform a function test after installation.

-- Check if both roll cover carriers -2- at the top and bottom are parallel to each other at the stop in the luggage compartment side trim panel guide.

-- If the catches are not parallel, check the routing of the release cable and/or adjust the release cables.

Release Cable for the Roll Cover, Adjusting

-- Turn the release cable adjuster -1- in the direction of -arrow A- or -arrow B-.

-- Adjust the release cable so that both of the roll cover catches are parallel to each other.

Further installation is the reverse order of removal.
